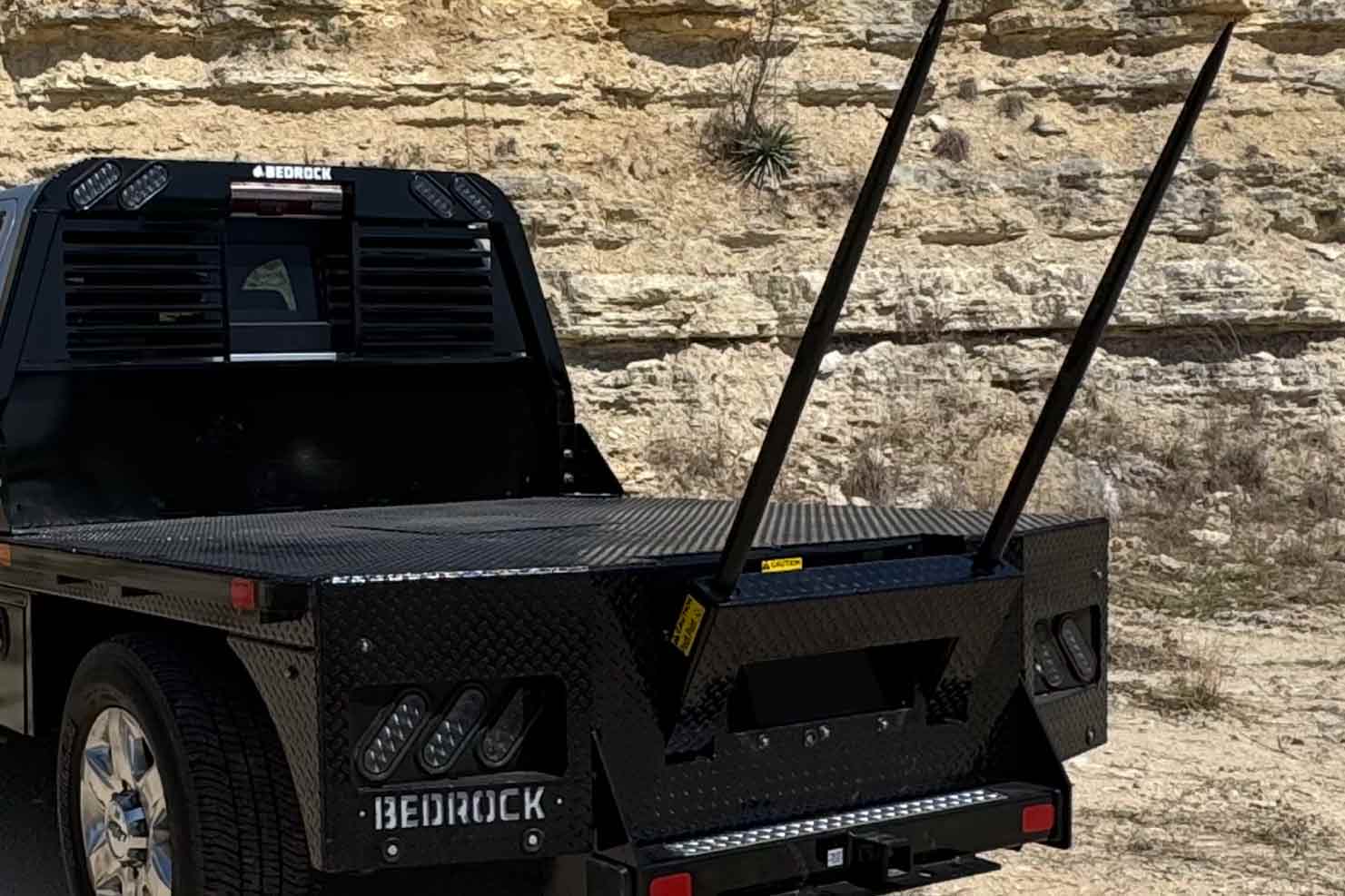

Spike Bed Series

An add-on option available exclusively for our Diamond*, Granite, & Granite+ Series Beds.

*Two under-body boxes are included on the Diamond Series.

Built for Ranchers. Ready for the Field.

Introducing the Spike Bed, Bedrock’s latest add-on designed for serious hauling and streamlined hay handling. Built for power, precision, and performance, the Spike Bed integrates seamlessly with the Diamond, Granite, and Granite+ series truck beds — delivering professional-grade hydraulic functionality right when you need it.

Powerful Hydraulic Performance

• KTI 12V D.C. Pump
• 3200 PSI Max Relief
• 2.0 GPM | Double Action
• Manual Relief Valve for Power Loss
• 15-ft Handheld Pendant Controller
• Wireless Controller (Optional)
• Bluetooth, 2-button up/down (Optional)
• Plug-and-Play Installation

Protection & Reliability

• 150 Amp Resettable Circuit Breaker
• Wire Protector Over Set Screw Connection
• 3-Year Warranty on Pump, Cylinders & Wireless Controller

*Hose warranty pending*

Fittings & Hoses

• 3/8” JIC Male
• #6 SAE (Cylinders)
• #6 SAE (Pump)

Hydraulic Cylinder

• 3" Bore | 10" Stroke | 3000 PSI
• 1" Clevis Mounting Bracket

Bale Spike

• 42.5" Overall Length
• 42" Usable
• Max Load: 3,234 lbs
• 1.625" Diameter
• 0.5" Attachment Hole
